YAG Laser  | Carl Zeiss  | VISULAS YAG II Plus

favoritefavorite printprint
Code SBJ 22613
Name YAG Laser
Brand Carl Zeiss
Model VISULAS YAG II Plus
Status New Arrival Sold
Price Make a request
Comment
ZEISS VISULAS YAG II Plus is a Q-switched Nd:YAG laser workstation designed for ophthalmic posterior capsulotomy and photodisruption.
Specification & Options
Wavelength: 1064 nm (Nd:YAG) Energy Range: 0.2–10 mJ for single pulse, up to 25 mJ (double pulse), and 40 mJ (triple pulse) Pulse Length: Less than 4 ns Burst Modes: 1–3 pulses per burst Aiming Beam: 4-point diode, 670 nm Weight: 11 kg (display/slit lamp unit), 4.5 kg (control unit
Configuration

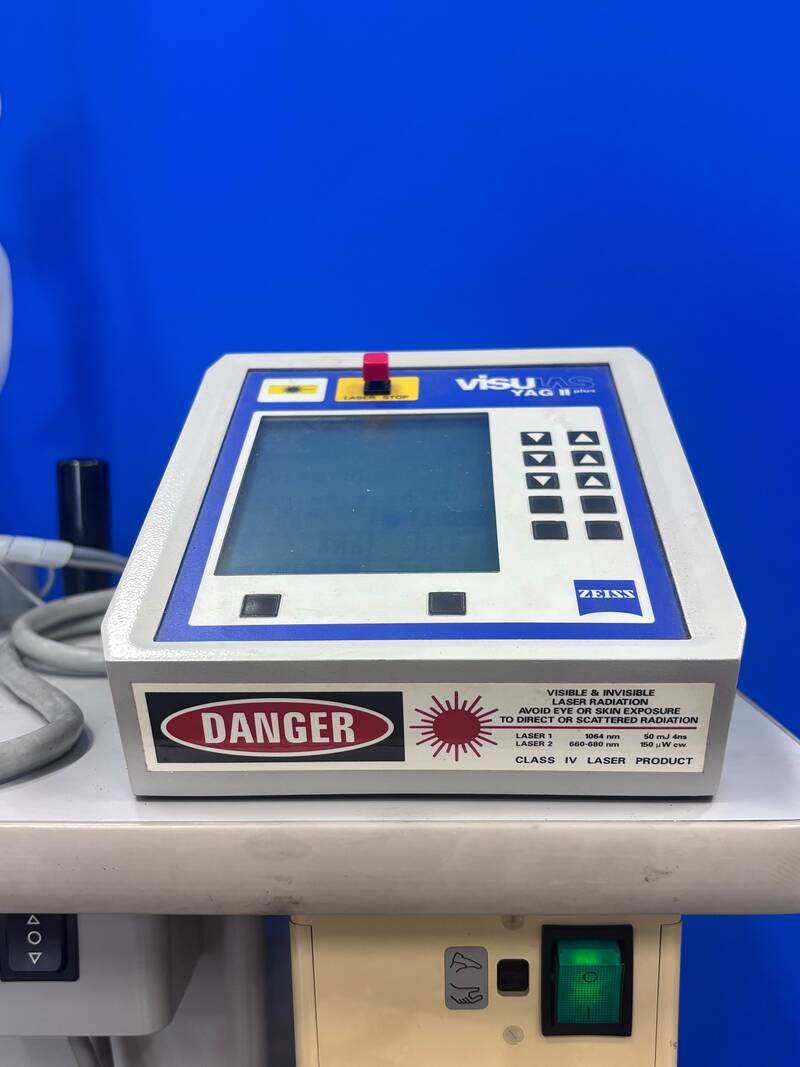

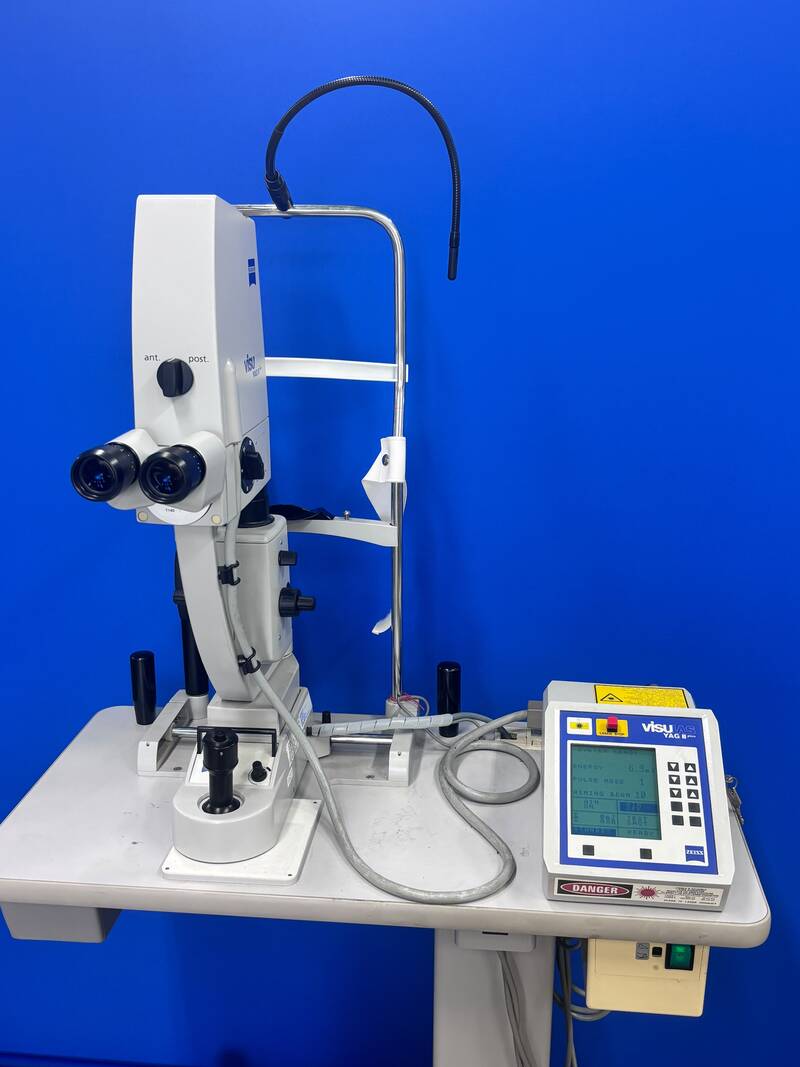

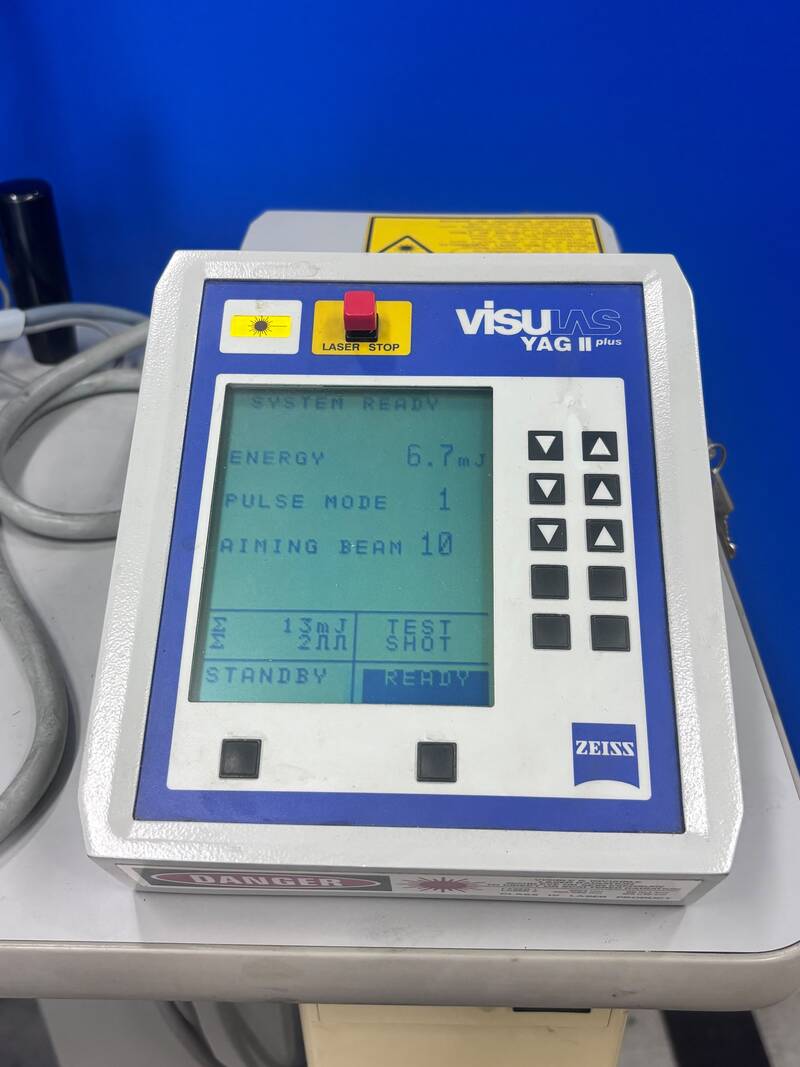

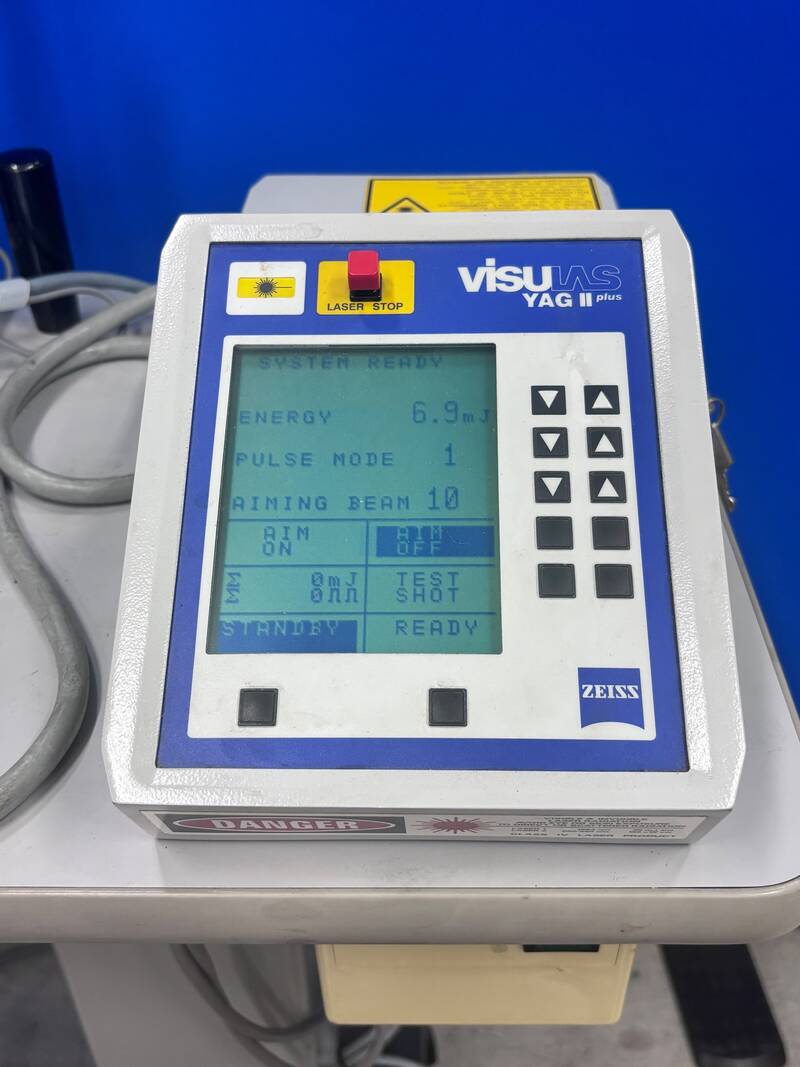

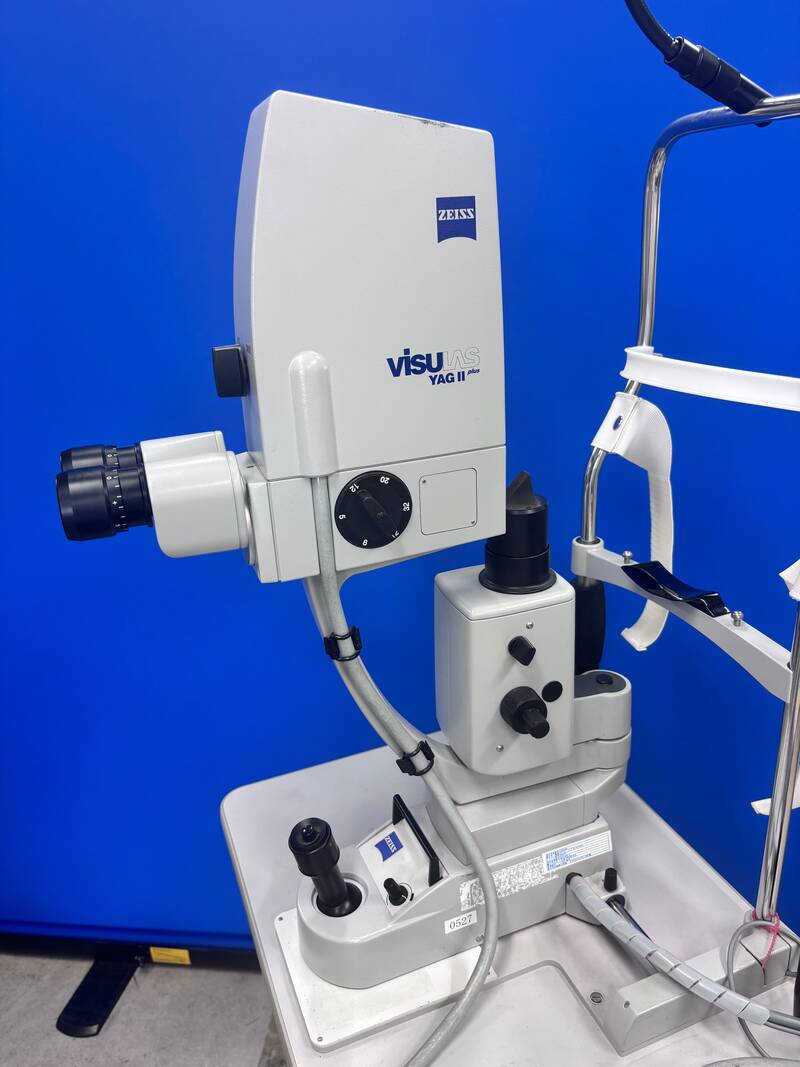

YAG II Surgical Slit Lamp UnitThe central workstation that integrates ZEISS high-performance optics with the laser delivery optics.Microscope: Features 12.5x eyepieces and a parallel magnification changer.Laser Head: Securely houses the 1064 nm Q-switched Nd:YAG laser tube and the 670 nm 4-point diode aiming beam mechanics.Control Unit (Display Panel)A dedicated console used to adjust energy levels, select burst modes (single, double, or triple pulse), and monitor the digital shot counter. It connects directly to the slit lamp unit via a dedicated system cable.Laser Slit Lamp Power SupplyThe main power distribution box for the entire system. It is specifically designed to be mounted upside down underneath the asymmetrical instrument table top using built-in support rails.
Condition
Patient ready
