Windows 11 PRO Zeiss OCT  | Carl Zeiss  | Cirrus 5000 HD-OCT

favoritefavorite printprint
Code SBJ 22016
Name Windows 11 PRO Zeiss OCT
Brand Carl Zeiss
Model Cirrus 5000 HD-OCT
Status New Arrival Under Nego
Price Make a request
Comment

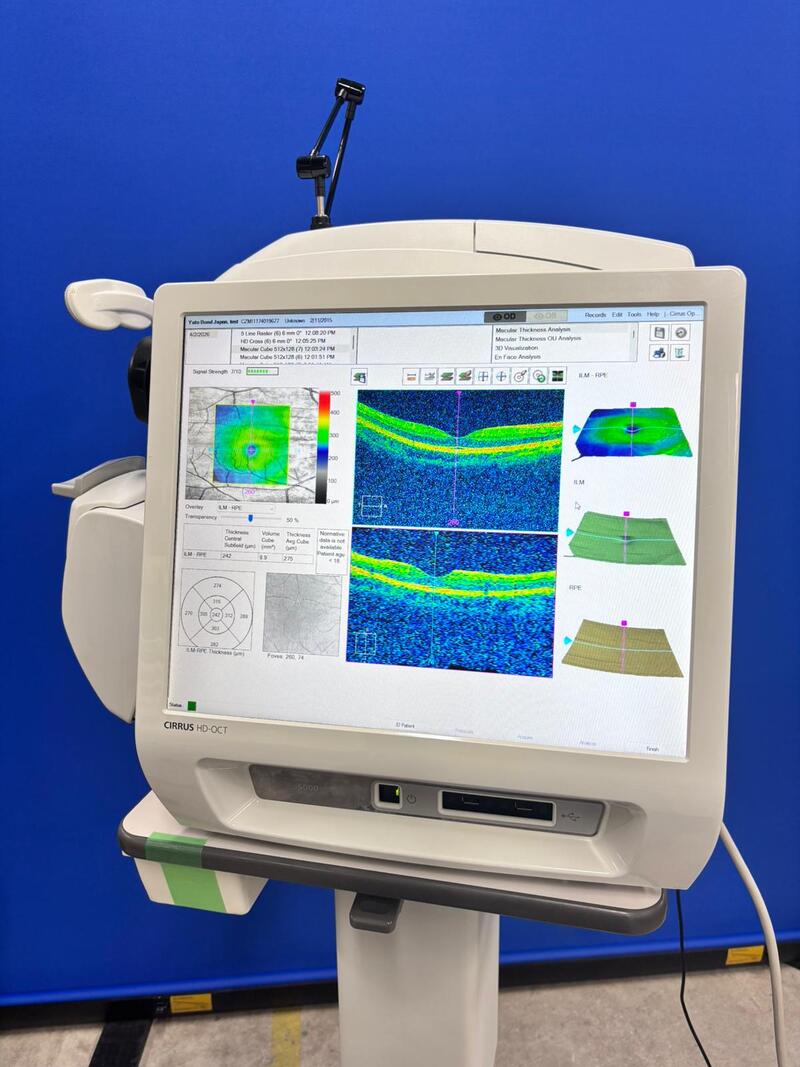

The pre-owned Zeiss HD-OCT 5000 has high resolution visualization capabilities and sophisticated clinical applications. These include Advanced RPE analysis to track retinal pigment epithelial integrity and Ganglion Cell Analysis to assess glaucomatous loss in the macula. FastTrac™ retinal tracking helps prevent eye motion artifacts. This feature allows for the highest resolution B-Scans to be captured in identical locations throughout the patient’s visit history providing precise evaluation of change in targeted pathologies. PRODUCT DESCRIPTION: The new CIRRUS HD-OCT models 5000 is specifically designed to deliver a carefully constructed set of sophisticated applications that build upon one another to deliver rapidly-evolving diagnostics for multiple patient populations. CIRRUS HD-OCT 5000 is the clinical powerhouse with FastTrac, and sophisticated analyses for the busy advanced care practice.
Specification & Options

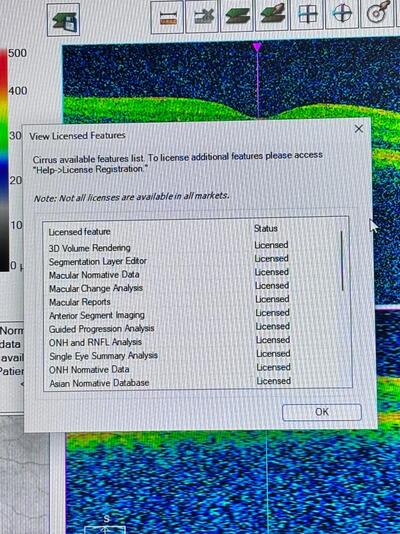

FEATURES: HD Smart Scans FastTrac™ retinal tracking system Macular Thickness OU Analysis Advanced RPE analysis Ganglion Cell Analysis Guided Progression Analysis (GPA™) Precision FoveaFinder™ Macular Thickness and Change Analysis Macular Thickness Normative Data SPECIFICATIONS: OCT Imaging Methodology: Spectral domain OCT Optical source: Superluminescent diode (SLD), 840 nm Scan speed: 27K- 68K A-scans per second A-scan: 2.0 mm (in tissue), 1024 Axial resolution: 5 μm (in tissue) Transverse resolution: 15 μm (in tissue)
Configuration
Electrical and Physical Weight: 80 lbs (36 kg) Dimensions of instrument: 26L x 18W x 21H (in), 65L x 46W x 53H (cm) Dimensions of table: 39L x 22W (in), 99L x 56W (cm) Fixation: Internal, external Internal fixation focus adjustment: -20D to +20D (diopters) Electrical rating (115V): Single Phase, 100–120V~ systems: 50/60Hz, 5A Electrical rating (230V): Single Phase, 220–240V~ systems: 50/60Hz, 2.5A
