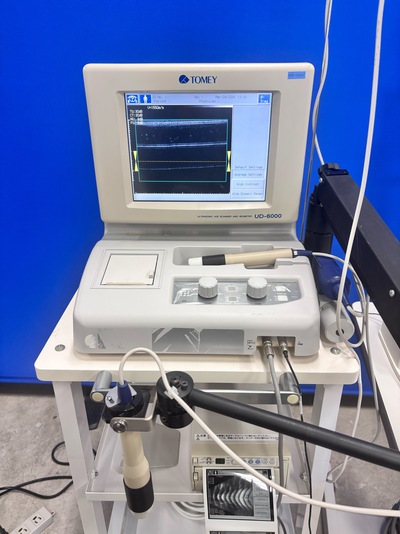

Code SBJ 21965
Name A, B, UBM Scanner
Brand TOMEY
Model UD-6000
Status New Arrival Under Nego
Price Make a request
Comment

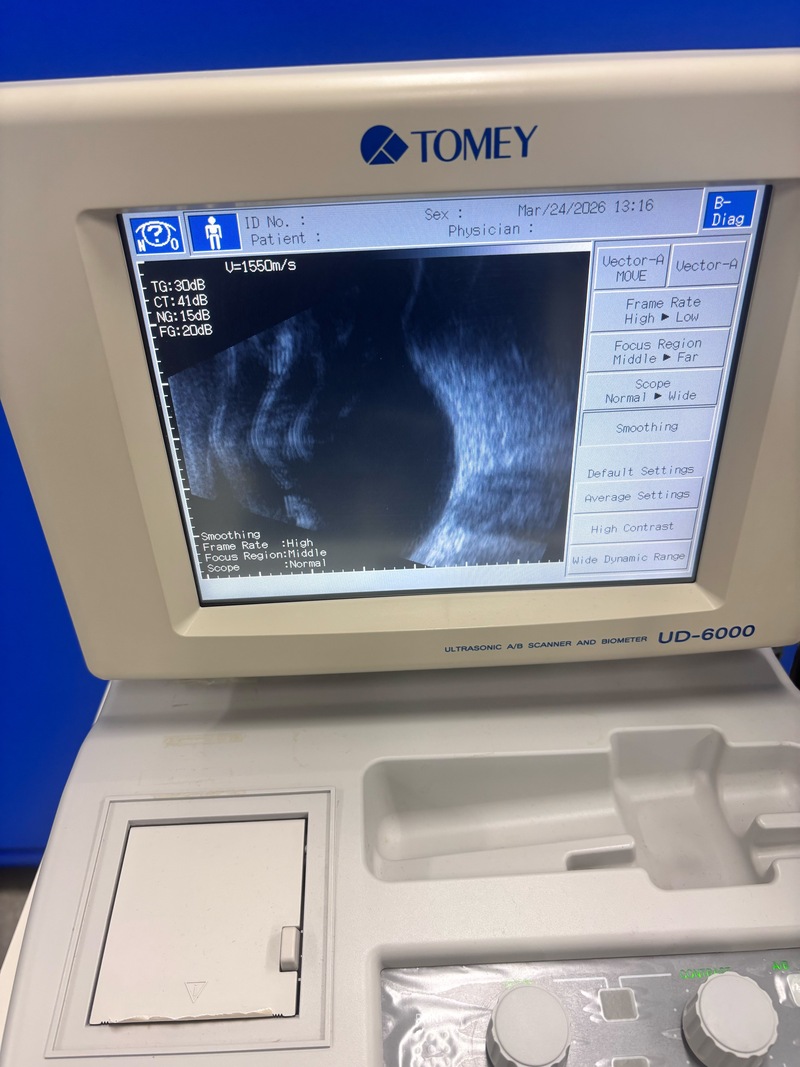

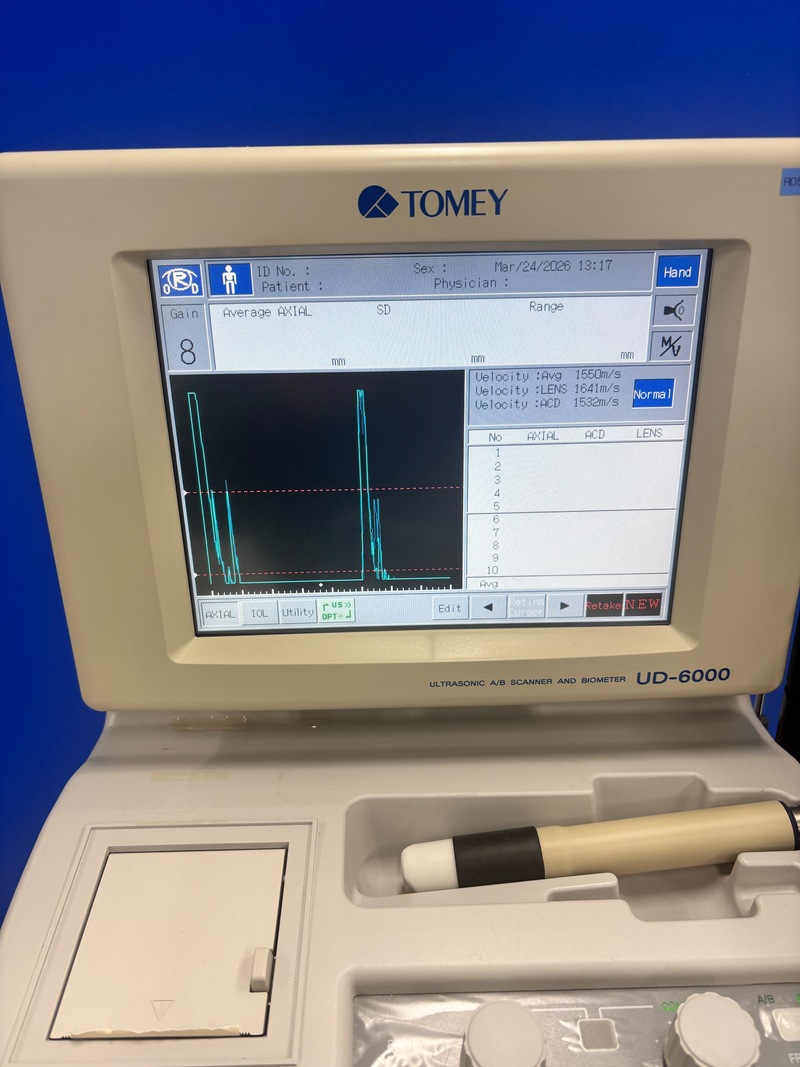

The UD-6000 combines all the applications of modern ultrasound diagnostics used in ophthalmology: - The latest generation high resolution A/B-sector scanner. - A diagnostic A-mode with an optional probe. - A sophisticated Biometry system. 20 MHZ PROBE 40 MHZ PROBE UBM Due to the probes higher frequency, you can visualize even the finest details of the anterior segment of the eye.
Specification & Options
The Annular Array Probe (10/20 MHz) of UD-6000 has 6 round oscillators placed in an annular arrangement and visualizes three focal planes at the same time. This setup is called the ”Dynamic Multi-Focus System” and provides a clear live video image all over the eye. The round design of the probe perfectly fits the human eye and orbita – a vast improvement over linear and convex probes. In addition the unique scanning system has a frame rate of 22 frames per second – fast enough to provide a motion picture.
Configuration
40 MHz UBM Probe (optional) Frequency 40 MHz Scan Mechanical Linear Observation Area 9*6 mm Display Resolution 50*50 µm Scan Rate 10 Frames/sec. Images 102 Colour scale 240 Gradation Minimum Distance 0.002 mm (V=1550 m/s) Distance Measurement Accuracy Between Two Cursors ± 0.1 mm Eye Cup (imm. cup) 4 Types Operation Arm Yes Dimensions 31 x 200 mm Weight Approx. 680 g Dimensions and Electric Requirement Dimensions: 360(W) x 427(D) x 346(H) mm Approx. 14kg (30.9 lbs.) Power supply: AC 100 ~ 240 V (adjusts automatically) Frequancy: 50 / 60 Hz Consumption power: 80 VA + 15%
Condition
Patient ready
