Product Information (  2020 - LED Slit lamp  | SBJ  | 21814 )

favoritefavorite printprint
Code SBJ 21814
Name 2020 - LED Slit lamp
Brand TAKAGI
Model 700 GL
Endorsement number
Status New Arrival Under Nego
Price Make a request
Comment

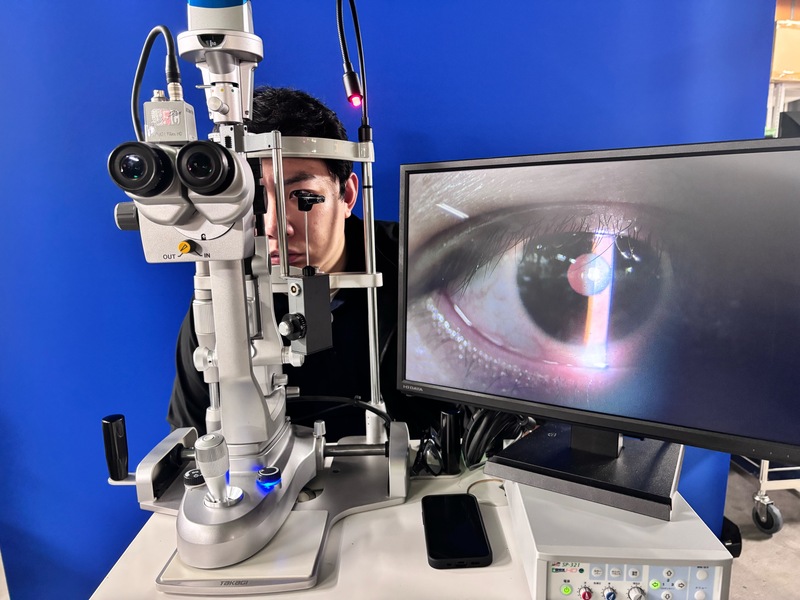

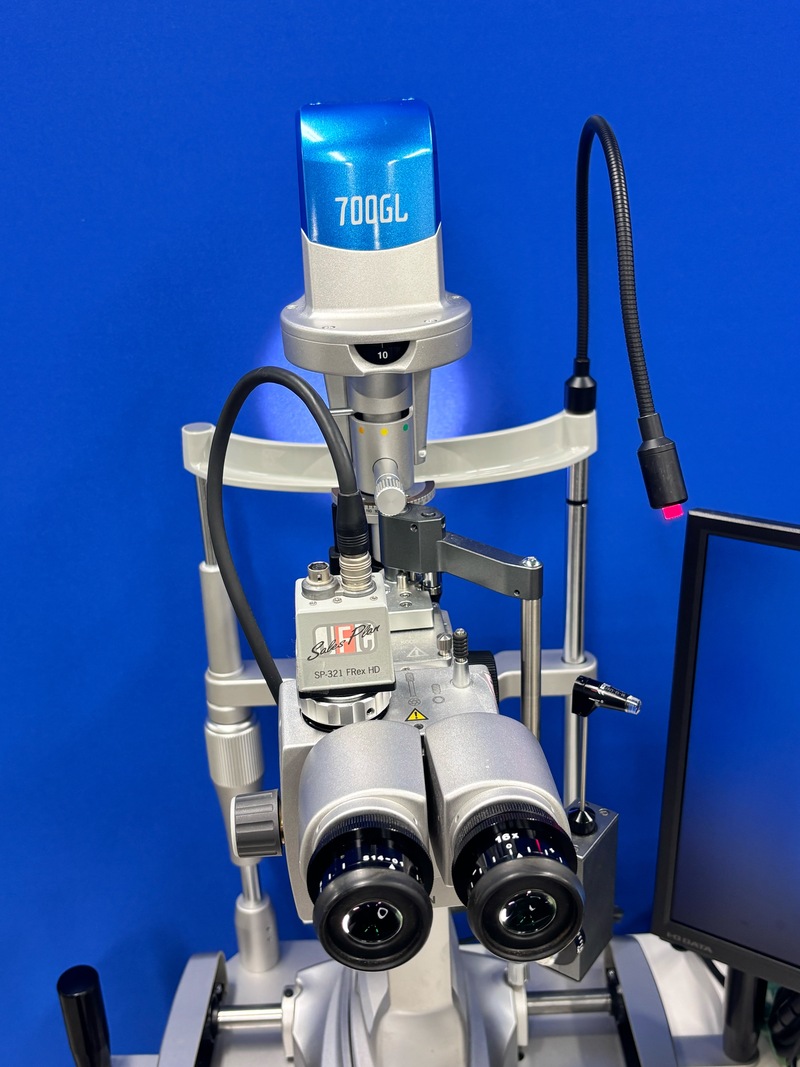

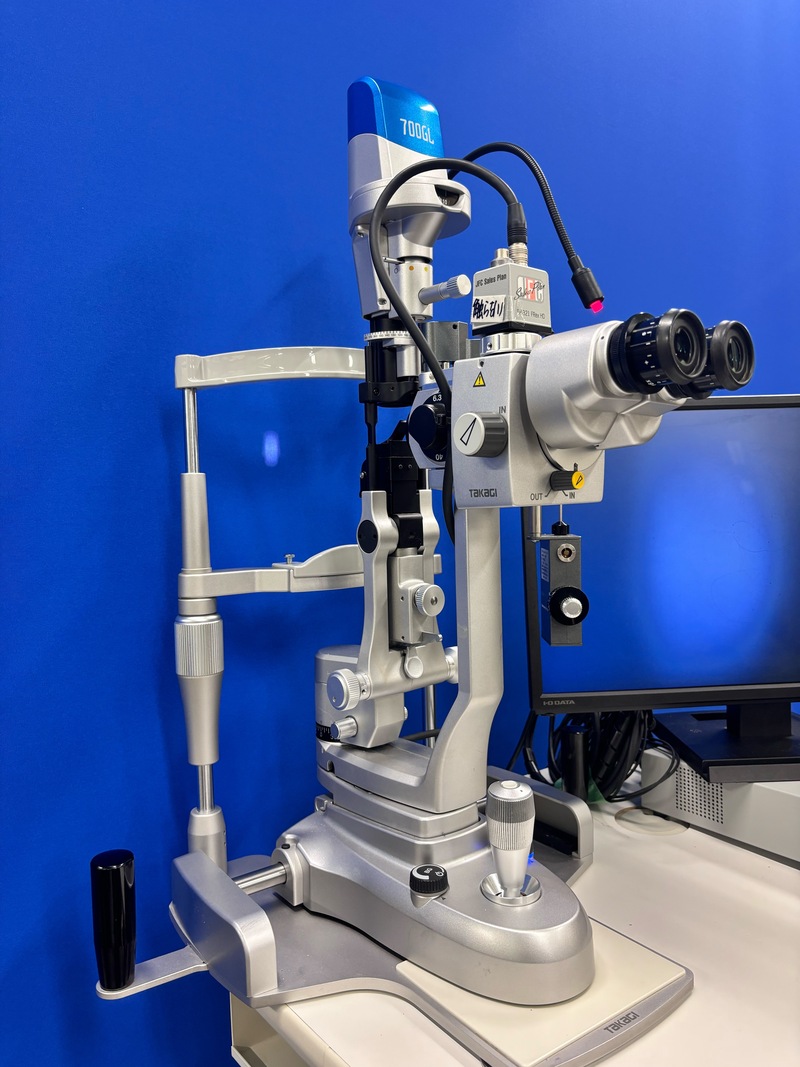

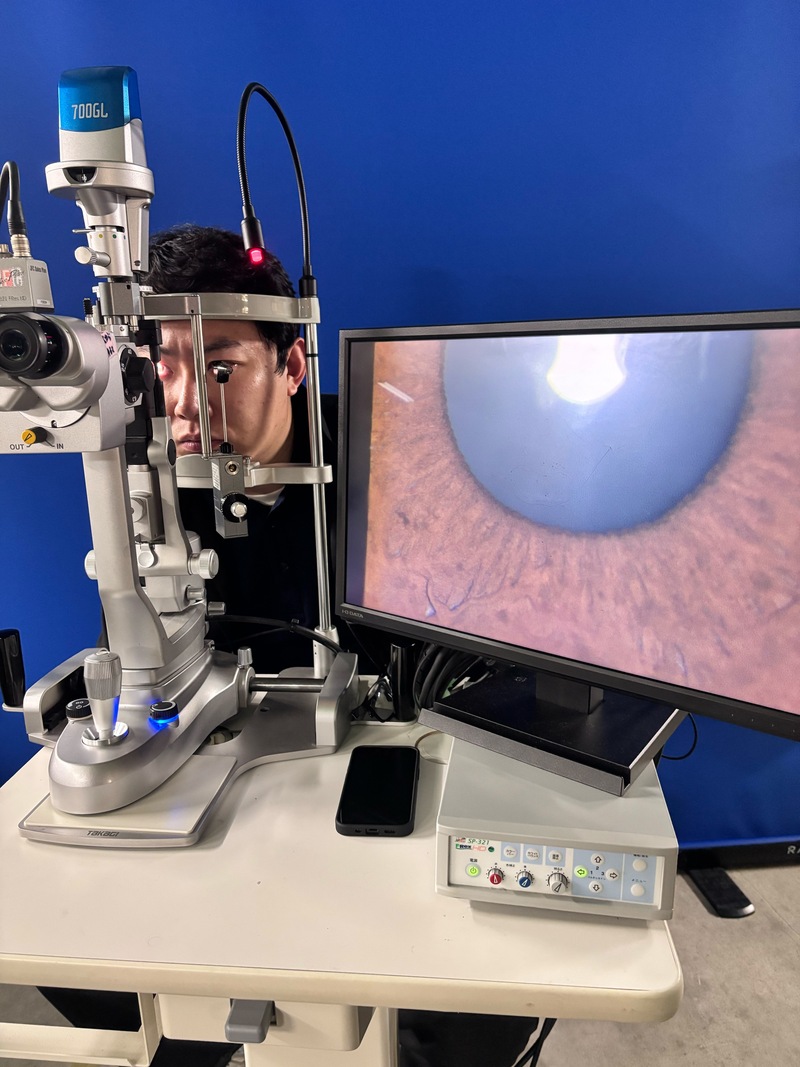

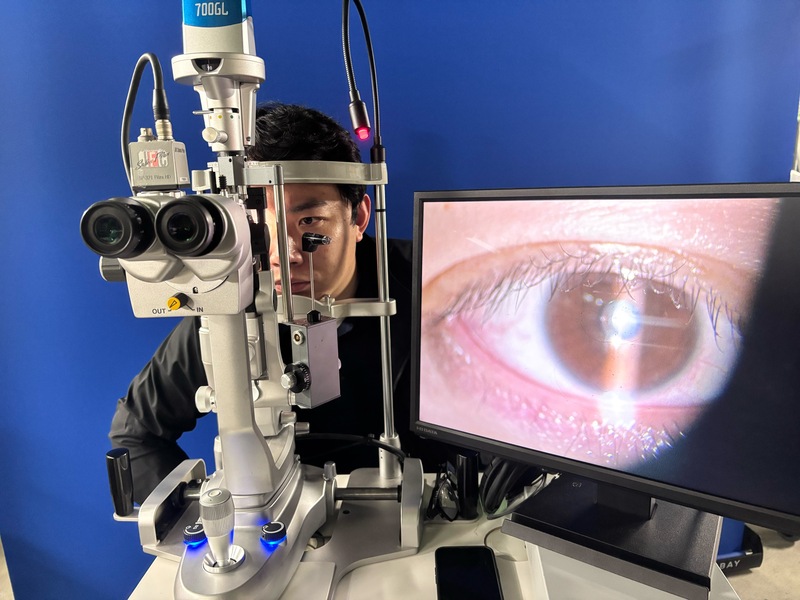

This chic, modern, clinical design will set a new standard in ophthalmic imaging. As well as ultra-low energy efficient LED illumination; the design has incorporated hidden cables, whilst maintaining enhanced and practical modern functionality. Now with Optional Tiltable Eyepieces and breath shield fitted as standard. Slit lamp with a feeling of being “visible” Our relentless pursuit of “visualizing” and our latest evolutionary slit lamp. Slit lamps cannot provide medical treatment, but we cannot talk about ophthalmology without slit lamps. This slit lamp is the number one performer behind the scenes. Innovative Design without a cable
Specification & Options

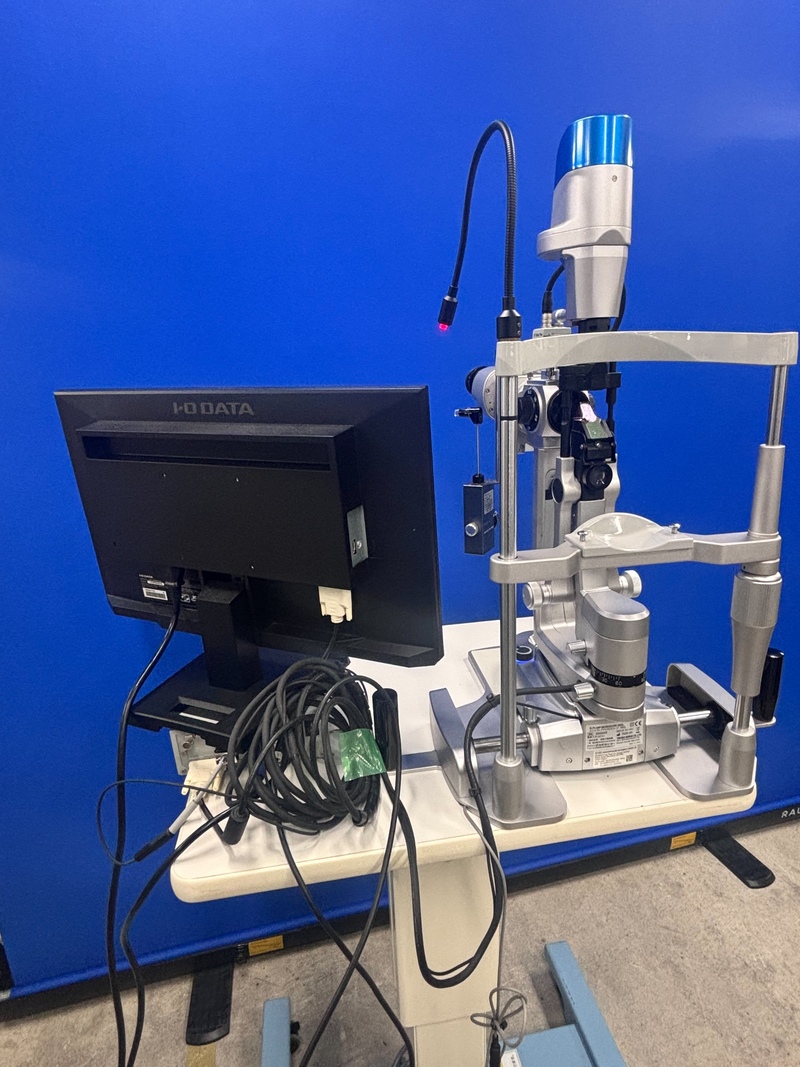

Innovative Design: No cables are exposed, the power supply cable is completely concealed Cables for connecting an imaging system can also be concealed. Renewed Product Color Optional Tiltable Eyepieces Now with breath shield as standard (optional for all other models)
Configuration

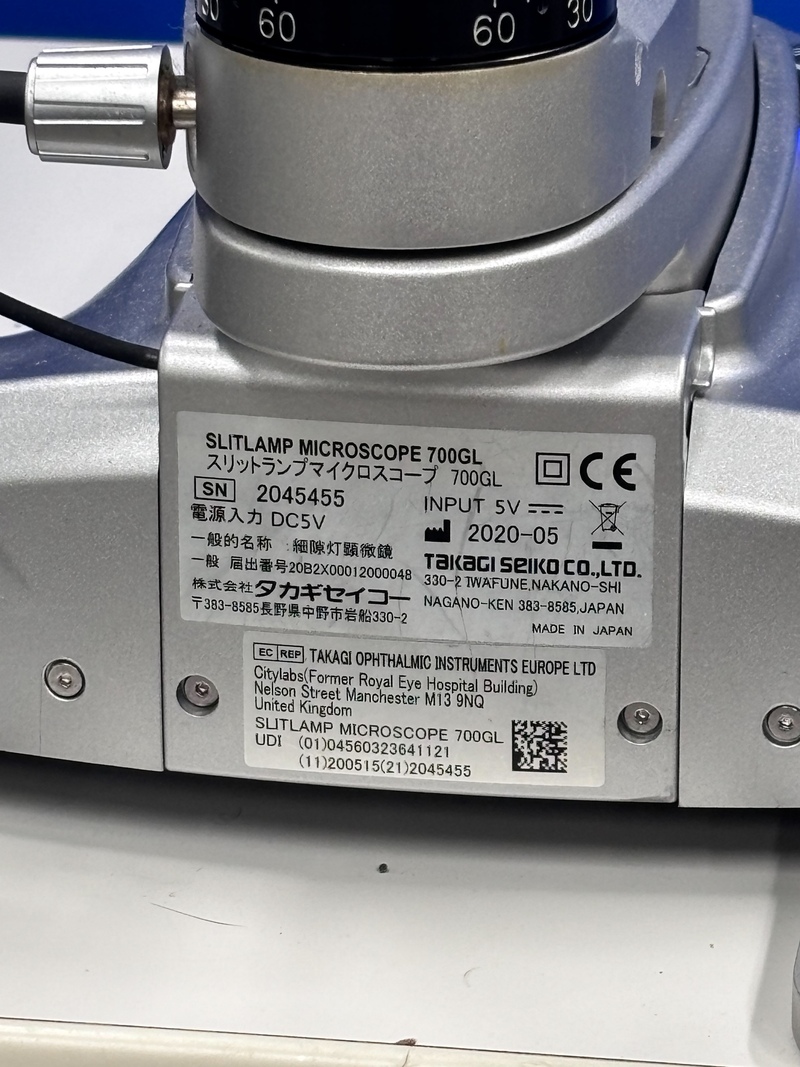

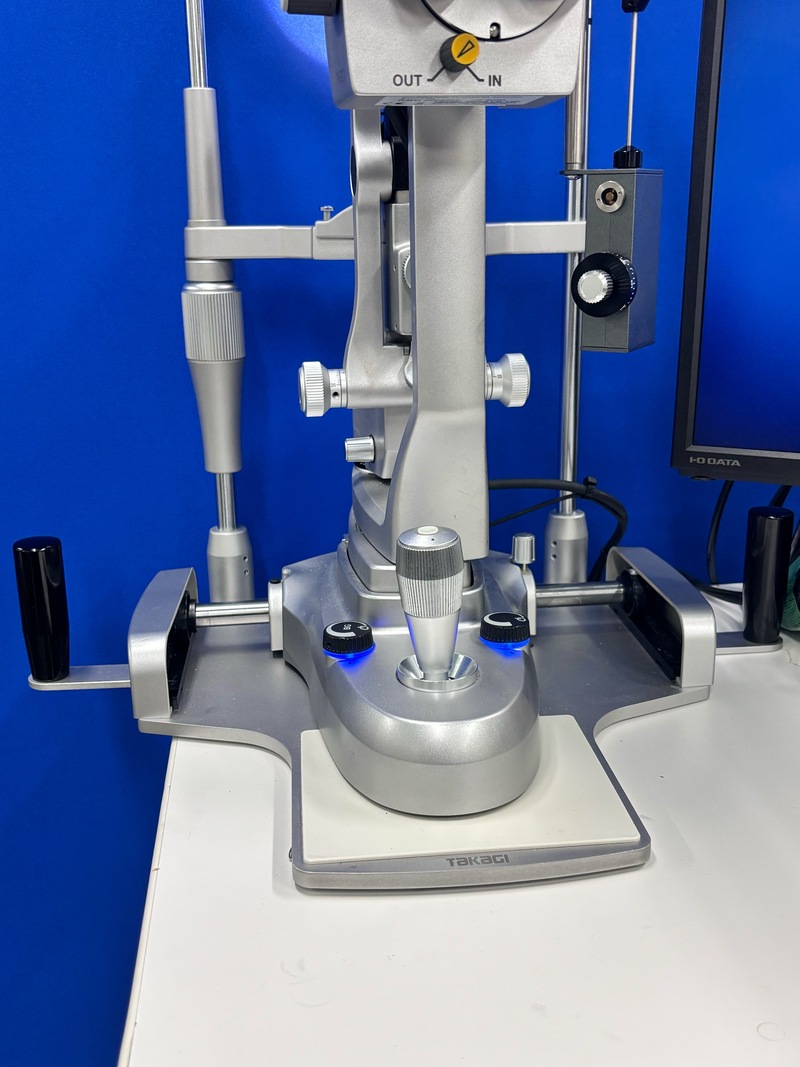

Microscope Type: Galilean converging binocular stereomicroscope. Magnification Change: Five-position rotating drum. Eyepieces: 16x wide-field, high-eyepoint Total magnification: 6.3x, 10x, 16x, 25x, 40x Real field of view (diameter): 35.9mm, 23.3mm, 14mm, 8.8mm, 5.5mm Interpupillary adjustment: 52 - 82mm Diopter adjustment range: +/- 7 diopters Base Unit Horizontal (coarse) movement: 15mm Vertical movement: 30mm Chinrest Unit Elevation stroke: 85mm Slit width: 0 - 14mm continuously variable Aperture diaphragm (diameter): ϕ14, ϕ10, ϕ5, ϕ3, ϕ2, ϕ1, ϕ0.2mm Illumination Unit Filters: Blue filter, Red free filter, Blue correction filter, Yellow filter Light source: LED Power supply: AC100V - 240V (+/- 10%) Power consumption: DC5V 2A Fixation Light Unit Fixation light source: Red LED Weight 12.5Kg
Condition
Patient ready
