Product Information (  B Scanner Ultrasound Unit  | SBJ  | 21473 )

favoritefavorite printprint
Code SBJ 21473

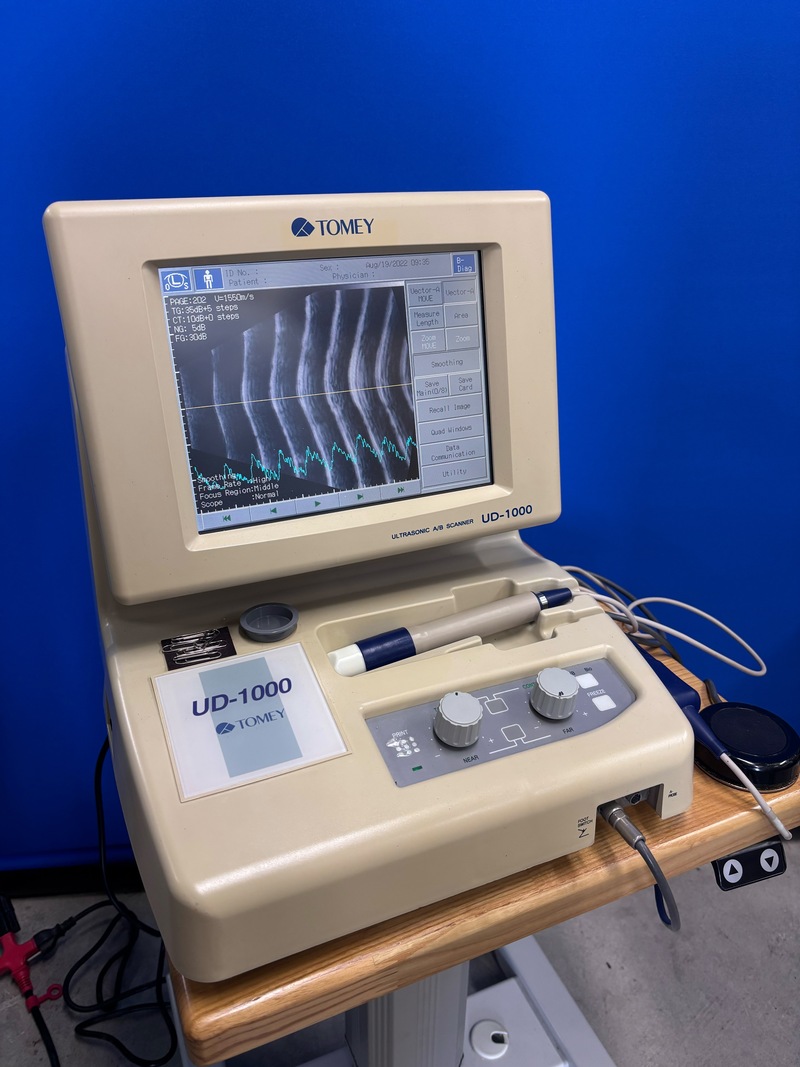

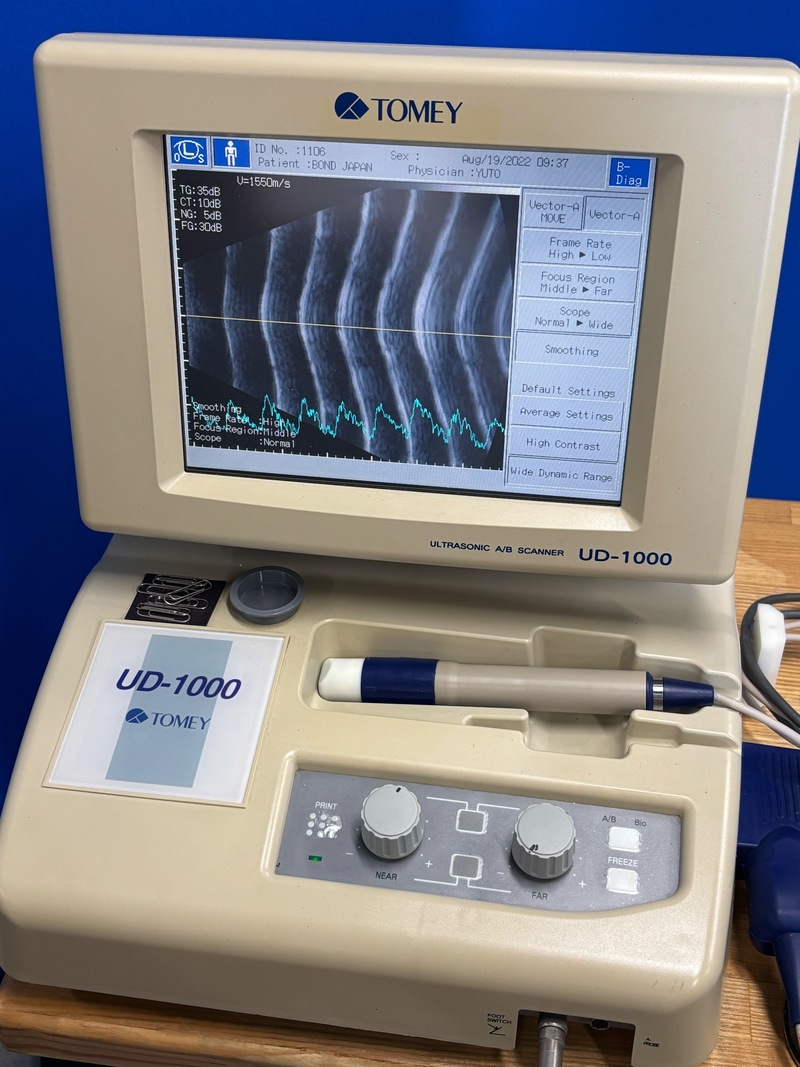

Name B Scanner Ultrasound Unit
Brand TOMEY
Model UD-1000
Endorsement number
Status New Arrival
Price Make a request
Comment

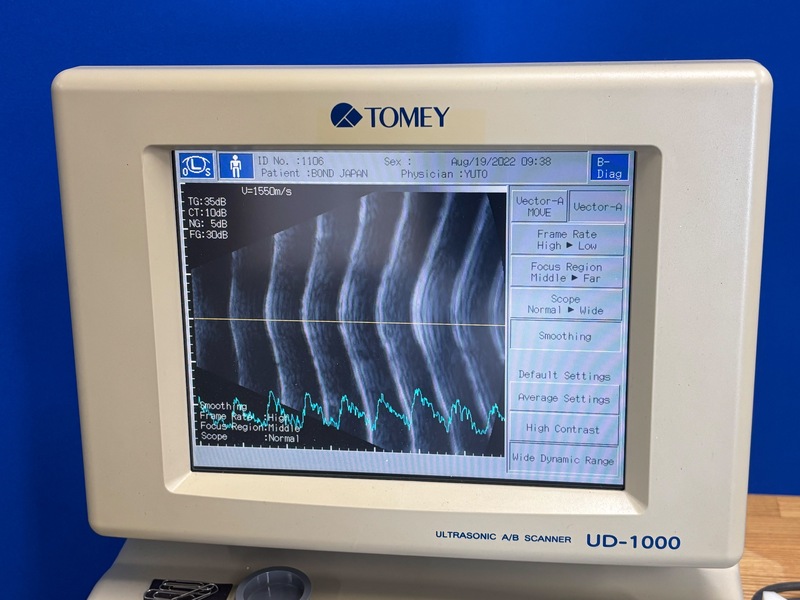

Another advance in coupling retinal problem diagnosis with patient care and communications is the A/B scanner ultrasound unit. Trauma and vitreous haemhorage, as well as diabetic retinopathy, often calls for the use of ultrasonography to provide information, assisting Dr. Uniat to quickly and effectively diagnose problems. The readings are immediate onto a computer screen, again facilitating discussion with patients on the degree of damage and the prescribed treatment.
Specification & Options

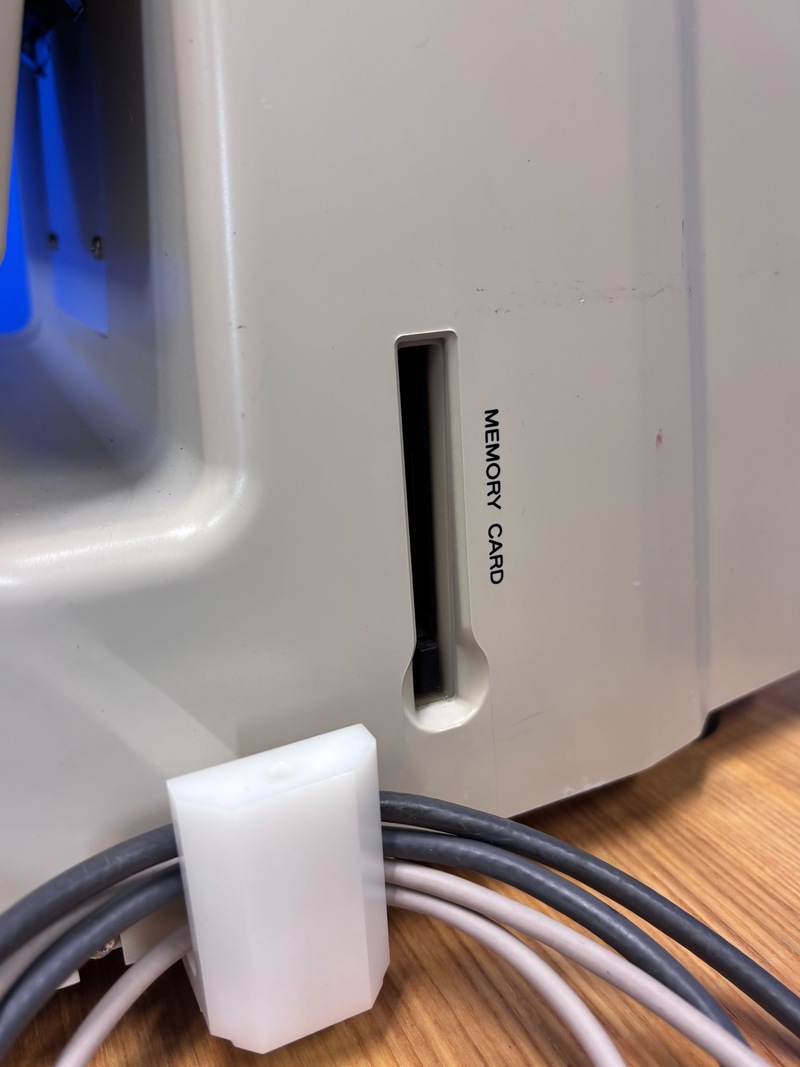

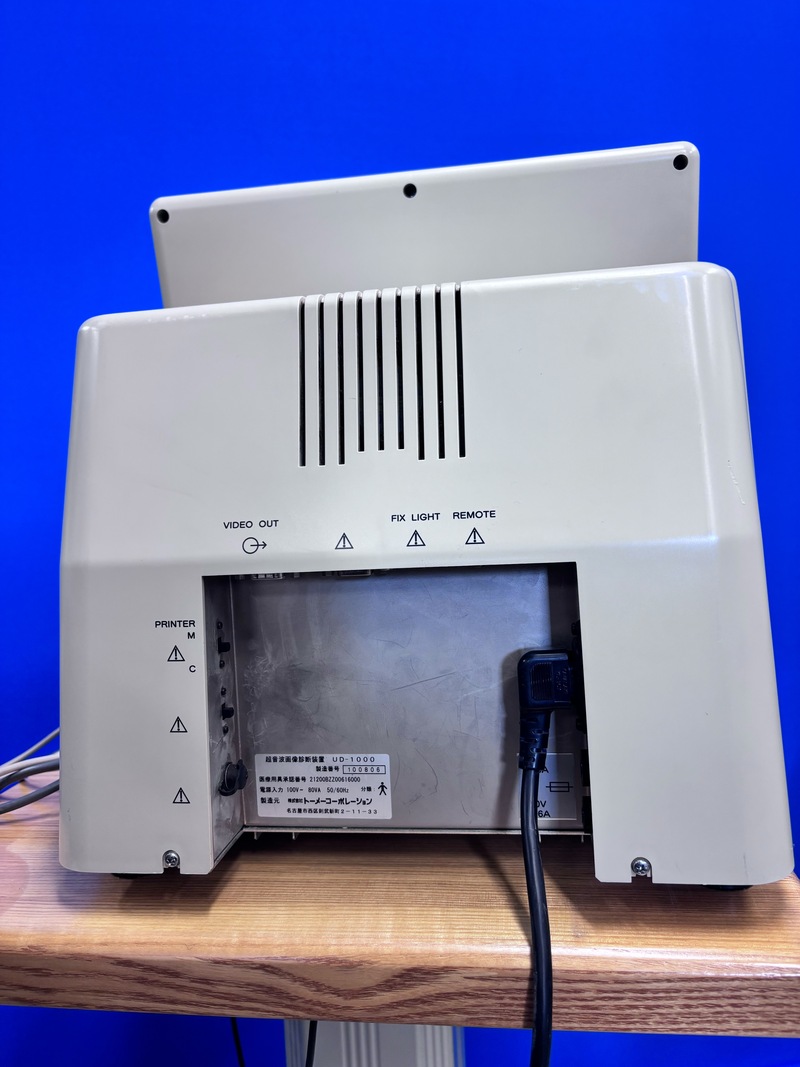

Features: High Resolution Annular Array B-Probe Automated Video Recording Area & Distance Measurement Touch ScreeN Memory Card Measure Axial Length & Calculate IOL Poer Six IOL Formulas Data Transfer through the LAN cable Specification: – Measurement Ranges – Probe BIO frequency: 10MHz and optional 20MHz – Probe A-diag frequency: 10MHz – B-Scan picture: Vector based – Image Adjustment – Total gain: 1-60dB – Near gain: 1-40dB – Far gain: 1-40dB – Image Display Range – Sector angle: 46.4 deg – Depth: 34.10mm – Vector A: 117 lines, 460 points – Gray Scales: 256 – Zoom: move function – Measurement Accuracy: +/- 0.1 mm – Monitor: 10.4 inches color LCD – Recording: Video outlet, RS-232 Interface – Dimensions (H x W x D): 13.6in x 14.2in x 16.8in (346mm x 360mm x 427mm) – Weight: 14 kg (31 lbs) – Power Supply: AC 100-240V, 50/60 Hz, 50 VA
Configuration

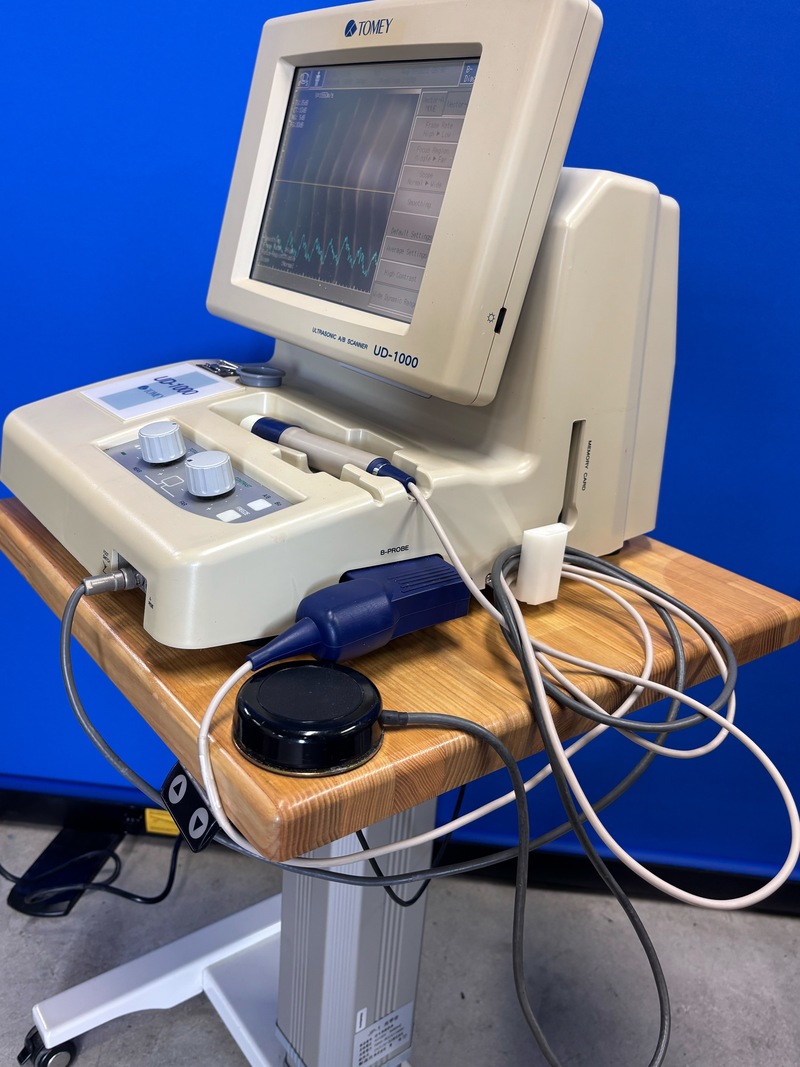

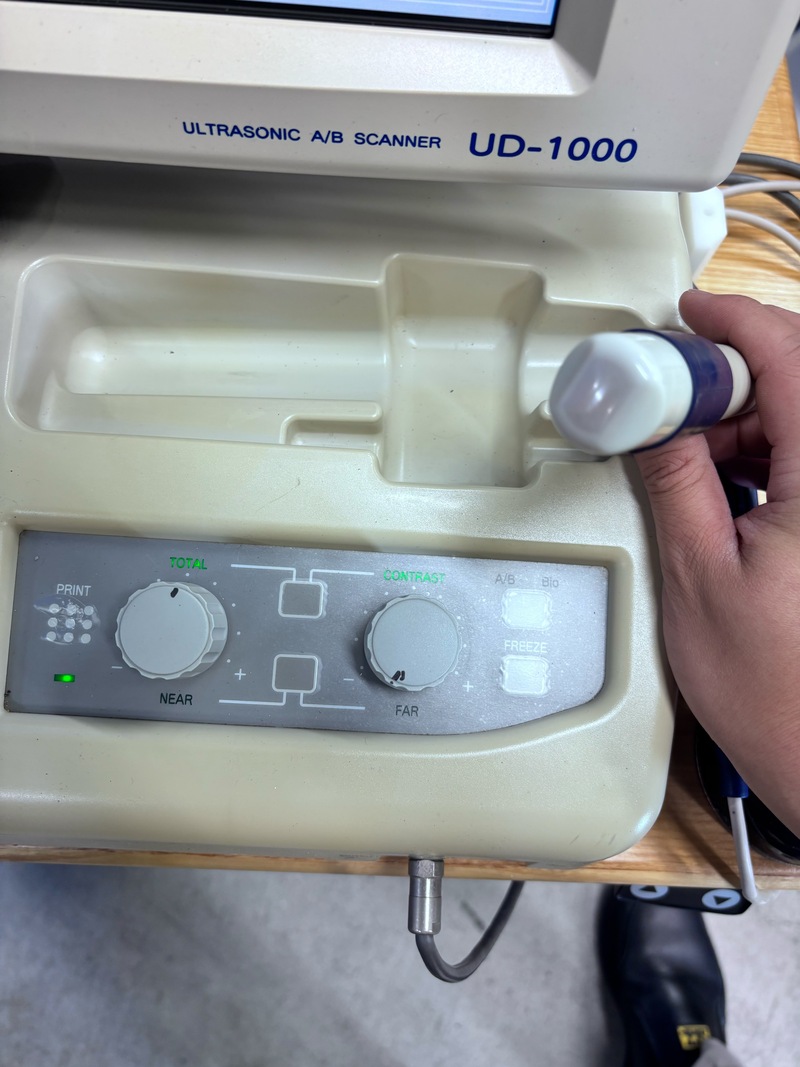

The main unit itself with B-Scan Probe UD-1050 and a foot switch B-scan Probe Scan Type: Mechanical scan Transducer frequency: 20MHZ Dimenstions / Weight: Ø 25.6 x 198 mm / 440g Frame rate: 22 frames / sec. Maximum capturing images: 220 images Display range: 9 x 6 mm Normal: 18.5 mm x 30.6° Wide: 28.0 mm x 30.6° Color scale: 240 level gray scale Minimum display unit: Axial: 0.3 mm Lateral: 0.4 mm Accuracy: ±0.5 mm Minimum distance unit: 0.05 mm step at 1,550 m/s of sound velocity Image adjustment: TOTAL: 1 ~ 60 dB (moving picture display) ± 5 steps (at freeze) CONTRAST: 1 ~ 60 dB (moving picture display) ± 6 steps (at freeze) NEAR: 1 ~ 40 dB FAR: 1 ~ 40 dB
Condition
Patient ready / Used in perfectly working condition.
